Venturi Pumps:

Low Vacuum Flow Range

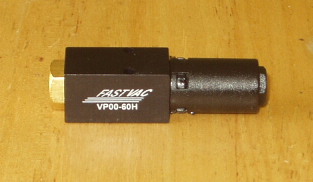

The Mini Series offers one high vacuum venturi in several compact, lightweight configurations ideal for small part pick and place applications and fast evacuation of small vessels. They require little installation space and can be positioned close to the vacuum point for fast response.

Features

• Compact
• Lightweight
• Powerful - 28-Hg vacuum

• Pick and Place
• Degassing
• Vessel Evacuation

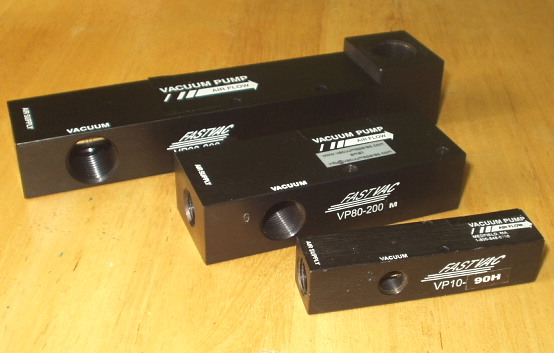

For maximum application versatility, the Mid Series utilizes modular components to allow the designer to specify only those features necessary for their specific application. Flexibility is further increased through the use of interchangeable cartridge venturies. Anyone of the eight cartridges can be used with the three standard body styles. Select the venturi that best fits your application based on the four performance characteristics: vacuum level, vacuum flow, evacuation speed, and air consumption. To simplify selection, venture performance has been separated into two categories, -M- for medium and -H- for high vacuum applications.

Features

• Compact

• Lightweight
• Powerful 28Hg vacuum
• Modular venturi cartridge design
• No moving parts

• Pick and Place
• Degassing
• Vessel Evacuation

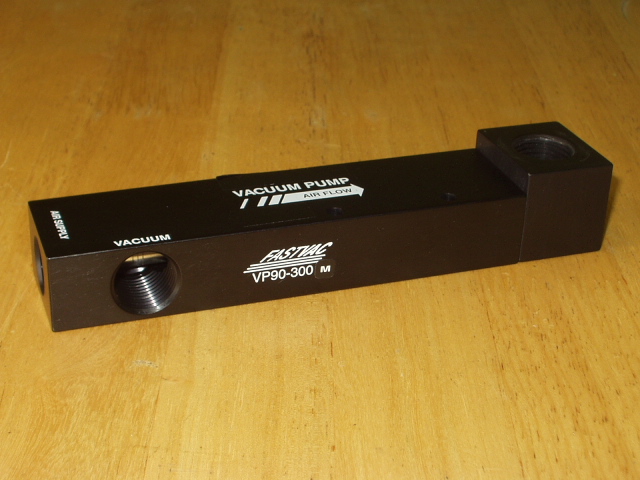

The Max Series offers high vacuum flow rates for rapid evacuation of large volumes of air. The Max Series is ideal for vacuum filling operations or where leakage must be overcome in order to sustain high vacuum levels while handling porous materials. The Max Series venturis are commonly used in applications where:

• One vacuum pump is powering multiple vacuum cup
• Large vacuum cups handle heavy, porous objects
• Systems have large vacuum lines or rotary vacuum valves which operate at high cycle rates (200-300/min)
• Evacuating a vessel with a volume of ½ cu. ft. or larger. (Normally, smaller volumes can be handled by the Mid Series)

Features

• Instant Response
• Modular Design
• Rugged Design
• Maintenance Free -No Moving Parts or Flap Valves
• High Velocity Air Ensures Efficient and Effective Operation
• 12 Models To Choose From Including:
• "M" Type Models: Produce Up To 20"Hg
• "H" Type Models: Produce Up To 28"Hg
• Can Be Specified To Operate At 60PSI

• Surface Mount Pick and Place Equipment
• Bag/Box Opening
• Circuit Board Testing
• Degassing
• Dental/Hospital Suction
• Evacuation of Molds
• Evaporation Control
• Labeling Machines
• Paper Feeding/Printing
• Pick & Place Applications
• Pneumatic Conveyor
• Vacuum Chucking, Clamping, Filling, Impregnation, Packaging, Veneering

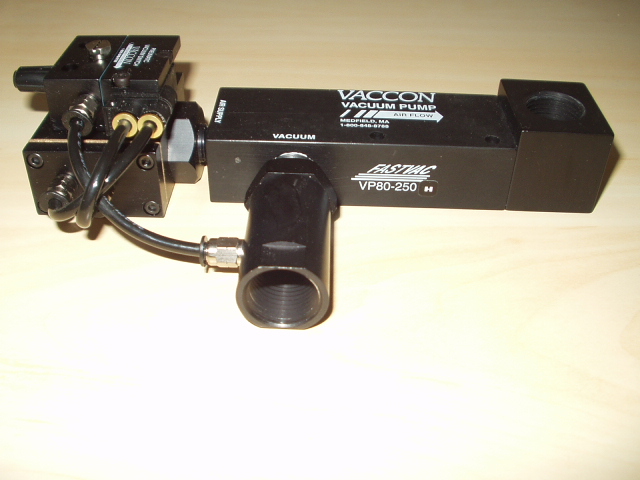

Venturi Vacuum Pump with Air Saver Circuit
air usage in vacuum clamping and vessel evacuation applications. For pick and place applications handling non porous materials, the Air Saver Circuit will maintain a safe holding force, save compressed air and hold the part even if the compressed air supply is interrupted providing an extra level of safety when handling large loads.

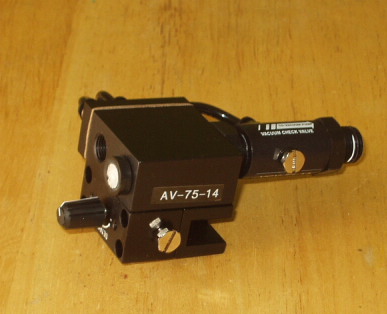

This complete system requires only a compressed air source to be fully functional. The system includes a venturi vacuum pump, vacuum check valve, air piloted air valve and pneumatic vacuum switch. The pneumatic vacuum switch is the brain of the system that constantly monitors the vacuum level.

• The vacuum switch is adjustable from 0 to 30Hg and is set using the adjustment knob.
• The hysteresis is 3Hg. Simply set the switch to the desired vacuum level and should there be a leak in the system and the vacuum level drops by 3Hg, the Air Saver Circuit automatically re-energizes the venturi to bring the system back to the preset vacuum level and then de-energizes the venturi. The vacuum check valve seals the system.
• The Air Saver Technology has been adapted to the entire range of venturi vacuum pumps. These are ideal for creating and maintaining vacuum for safe, energy efficient operations for clamping, pick and place and vessel evacuation applications.
• The air saver circuit can also be purchaced separately and fit to any of the max series venturi vacuum pumps.

• Energy Efficient
• Safe
• Compact

• Dependable
• Lightweight

• Clamping and Vacuum Chucking
• Vessel Evacuation
• Pick and Place of Heavy Loads
• Hold Vacuum While Molds Cool
• Lifting Systems

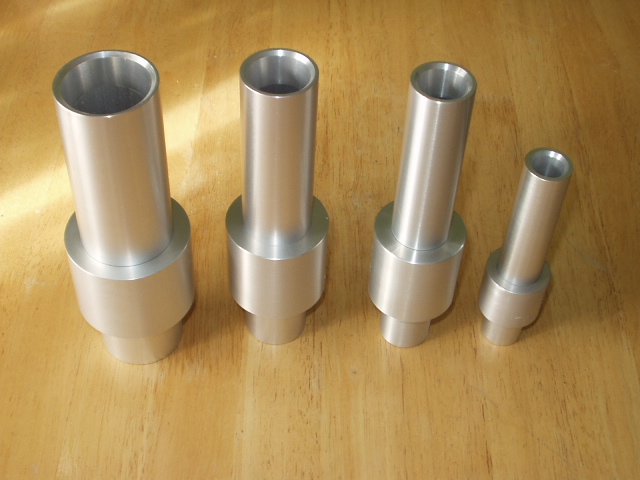

High Flow Vacuum Pumps for Material Transfer;
a reliable and effective method of in-line transfer of complex shapes and bulk materials such as: small parts up to 3 inches in diameter, continuous strips, and powders. Vacuum flow rates can be infinitely controlled over the pumps entire range by regulating the input pressure. The pumps unique capability to create instantaneous vacuum flow and high air velocity combined with its straight through, smooth bore design allows materials to pass directly through the unit at high speeds without interference or clogging.

Features

• Application versatility
• High efficiency
• Low initial and operating cost
• Maintenance free operation
• Modified and custom units available
• 15 standard models with insides diameters from 1/8 to 3

• Unloading vibrator feeders
• Reloading hoppers with plastic Regrind
• Transferring of engine valves in grinding operation
• Chip removal in drilling operation
• Transfer power detergent and caustic chemicals
• Selvedge removal in trimming operation
• Mandrel collection system

Variable Flow Vacuum Pumps

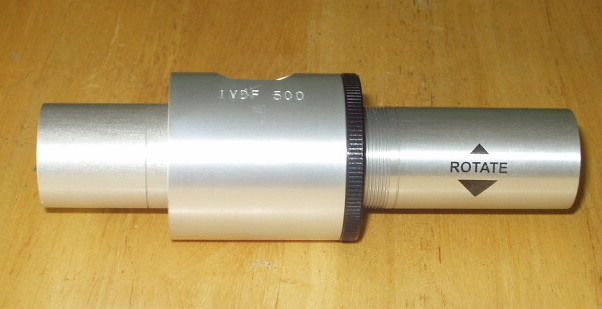

The VDF Series of adjustable air powered vacuum pumps provides a combination of high vacuum flow rates of up to 120SCFM, and vacuum levels of up to 25Hg. Because of its straight-through design, the VDF Series is ideal for handling porous materials and operation in contaminated situations. VDF pumps can be used to pick and place concrete block, or packaging materials that are coated with fine powder, and are commonly used in industrial air driven vacuum cleaners to remove liquid or solid mixtures from sump areas. VDF pumps are field adjustable and eliminate the need for additional regulation of air lines to remotely vary the levels of vacuum or flow that is required.

Features

• Ideal for dirty environments and handling dusty materials
• Non-clogging, straight-through design
• High performance to air consumption ratio
• Field adjustable

Applications

• Pick & Place Applications
• Vacuum Packaging
• Liquid or solid mixtures removal

Air Amplifiers

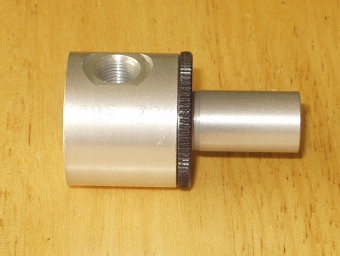

The CDF Series of air amplifiers generates both a high suction (vacuum) flow and a high exhaust flow using only a small amount of compressed air. The CDF can also be used for applications requiring extremely high levels of vacuum flow to rapidly evacuate large areas where porosity is a major problem.

Features

• High, 40:1 amplification ratios

• Field adjustable
• Instant response
• Efficient and cost effective alternative to electric blowers
• Seven standard models available with bore of 1/8 to 2

Applications

• Blow Drying
• Cooling
• Fume Evacuation
• Improved Utilization

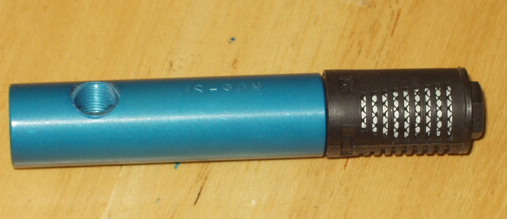

Pumps are available in 16 standard models with a full range of optional accessories for pick and place and other similar applications where reliable vacuum and high performance are required. They operate with instantaneous response in pulsed applications or on a continuous basis.

Features

• Instant response

• Rugged, cylindrical design
• High velocity air insures efficient and effective operation
• Maintenance free
• Available in wide range of materials including aluminum, stainless steel, PVC and teflon. Normally, smaller volumes can be handled by the Mid Series

• Surface Mount Pick and Place Equipment
• Bag/Box Opening
• Circuit Board Testing
• Degassing
• Dental/Hospital Suction
• Evacuation of Molds
• Evaporation Control
• Labeling Machines
• Paper Feeding/Printing
• Pick & Place
• Pneumatic Conveyor
• Vacuum Chucking, Clamping, Filling, Impregnation, Packaging, Veneering

FA51 Series

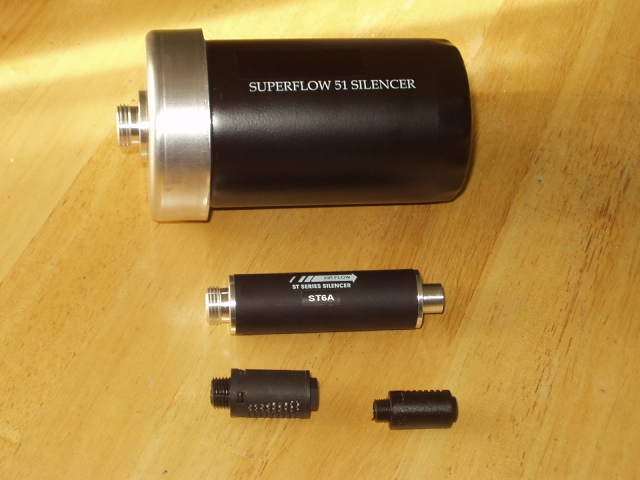

The silencers are extremely effective in reducing air exhaust noise from venture pumps and other pneumatic devices. The AA, St. and FA51 Series reduce noise levels by up to 30dB while allowing high flow rates with minimal back pressure.

AA Series
Compact, lightweight and durable, these silencers have excellent noise reducing characteristics with minimal resistance to air flow

ST Series
Straight through design eliminates clogging by allowing contaminants to pass directly through the silencer

FA51 Series
Silences high volume exhaust applications without back pressure

Benefits:

• Maximize performance - silence pneumatic equipment without back pressure
• Increase productivity - silence irritating work area noise
• Increase safety and equipment life - silencers protect equipment and the environment
• Increase savings/reduce costs - silencers reduce maintenance costs

VDS 1000

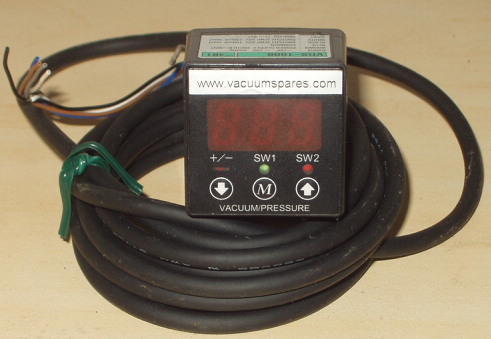

The Vacuum Digital Sensor is a compact output device and a digital gauge in one; thus reducing the number of components in your system. With two switch outputs, you can monitor the high and low limits for vacuum control and system conditions.

Features:

• Programmable set-up
• Full 3 digit LED display
• LED indicators for switch outputs

• 2 switch outputs + analogue output
• Choice of rear mount, bottom mount or panel mount brackets

SX 5
The vacuum switches are ideal for use in automated systems to generate a low current electrical signal for input to a PLC or other logic controller. They are normally open, diaphragm operated, and utilize low stress deflecting contacts instead of sliding or pivoting parts resulting in high reliability and long life
