Oil Recirculating Rotary Vane Vacuum Pumps:

Single stage vacuum pump by P.V.R.

These pumps feature the well proven Rotary vane principle. They have been used in industry for over 35 years. They are available in many sizes ranging from 10 to 1000 metres cubed per hour with end vacuum of 0.5mbar (a).

The model number idicates the type of pump.
ie.  PVL 100

107cm/hr
ultimate vacuum is 0.5mbar

PVL 100B
107cm/hr
Ultimate vacuum 10mbar

All pumps are complete with motor and gas ballast valve.  They can be supplied bareshaft and up to size PVL 100 with single phase motors.

They are very easy to work on and parts are reasonably priced.

Their many applications include the following:
1. Vacuum packing
2. Pick and place applications.
3.Pneumatic conveying
4. Thermoforming.
5. conveying of liquids.
6. Printed circuit board testing.
7. Bottle filling.
8. Printing machines.
9. CNC Vacuum routers.
10. vacuum lifting equipment.
11. Degassing of rubber, plastics,etc.




Technical data:
Model
Nominal capacity
Rpm
Motor
power
Absolute ultimate vacuum
Weight (1)
  m3/h
min-1
Kw
mbar (absolute)
Kg
EM4
 50 Hz
60 Hz
4
4.8
1350
1620
0.12
0.15
2
20
5.4
5.5
EM8
 50 Hz
60 Hz
8.5
10
1350
1620
0.25
0.30
2
20
12
12
EM12
 50 Hz
60 Hz
12
14.5
1400
1700
0.37
0.55
2
20
14
14
EM20
 50 Hz
60 Hz
18
21
1400
1700
0.55
0.66
2
20
17
17
EM28
 50 Hz
60 Hz
28
33
1400
1700
0.75
0.9
2
20
26
26

EM28
 50 Hz
60 Hz
42
51
45
54
1.1
1.3
2
20
30
30
EU 65 50 Hz
60 Hz
65
78
1400
1700
1.5
2.2
0.5
0.5
10 (2)
10 (2)
60
65
EU 105 50 Hz
60 Hz
105
126
1500
1800
2.2
3
0.5
0.5
10 (2)
10 (2)
82
86
EU 160 50 Hz
60 Hz
152
182
1500
1800
3
4
0.5
0.5
10 (2)
10 (2)
104
110
EU 205 50 Hz
60 Hz
205
245
1500
1800
4
5.5
0.5
0.5
10 (2)
10 (2)
161
171
EU 300 50 Hz
60 Hz
300
350
1500
1800
5.5
7.5
0.5
0.5
10 (2)
10 (2)
188
192
PVL 400 50 Hz
60 Hz
403
484
1450
1750
7.5
11
0.5
0.5
10 (2)
10 (2)
305
337
PVL 540 50 Hz
60 Hz
536
643
1450
1750
11
15
0.5
0.5
10 (2)
10 (2)
330
354
EU 750 50 Hz
60 Hz
765
918
980
1170
18.5
22
0.5
0.5
10 (2)
10 (2)
767
787
EU 1000 50 Hz
60 Hz
1013
1216
980
1170
22
30
0.5
0.5
10 (2)
10 (2)
862
922

(1)= with three-phase motor
(2)= low vacuum version

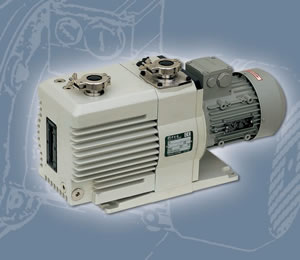

Two-stage high vacuum pumps PHV series
Two-stage oil sealed rotary vane vacuum pumps PHV-Series have got a new design for achieving higher vacuum and capacities, easy installation, operation and maintenance.

The pumps have been designed for all types of applications such as laboratories, semi-conductor industries, cathode-ray tubes, measurement instruments, light bulbs, fluorescent lights, distillation, refrigeration, freeze drying, mass spectrometry, as backing pumps in pumping systems, etc.

Pumps are supplied complete with oil anti suck-back valve, gas ballast valve and ISO KF clamp.

The pump and the motor are connected by an elastic coupling.

Technical data:


  PHV-5 PHV-10 PHV-20 PHV-30 PHV-40 PHV-50 PHV-75
Nominal capacity 50 Hz 4,8 10,2 20,4 30 40,2 49,8 75
60 Hz 6 12 24 36 48 60 90
Ultimate pressure (abs) Gas ballast closed 7x10-4 7x10-4 7x10-4 7x10-4 7x10-4 7x10-4 7x10-4
Gas ballast pos.I 7x10-3 7x10-3 7x10-3 7x10-3 7x10-3 7x10-3 7x10-3
Gas ballast pos.II 1x10-2 1x10-2 1x10-2 1x10-2 1x10-2 1x10-2 1x10-2
Max water vapour tolerance mbar 53 53 33 33 53 53 53
Water vapour capacity g/h 180 180 300 520 1184 1350 1950
Oil charge L. 1,3 1,1 1,4 1,8 3,8 5,5 6,5
Inlet port DN 25KF 25KF 25KF 25KF 40KF 40KF 40KF
Outlet port DN 25KF 25KF 25KF 25KF 40KF 40KF 40KF
Motor power KW 0,4 0,4 0,75 0,5 1,5 2,2 2,2
Pump rotational speed 60Hz 1450 1450 1450 1450 1450 1450 1450
50 Hz 1750 1750 1750 1750 1750 1750 1750
Noise level (without gas ballast valve) Db 52 52 54 54 56 56 56
Weight
(single phase / 3-ph.)		 Kg 22,5 24 34 38 70 83 89
